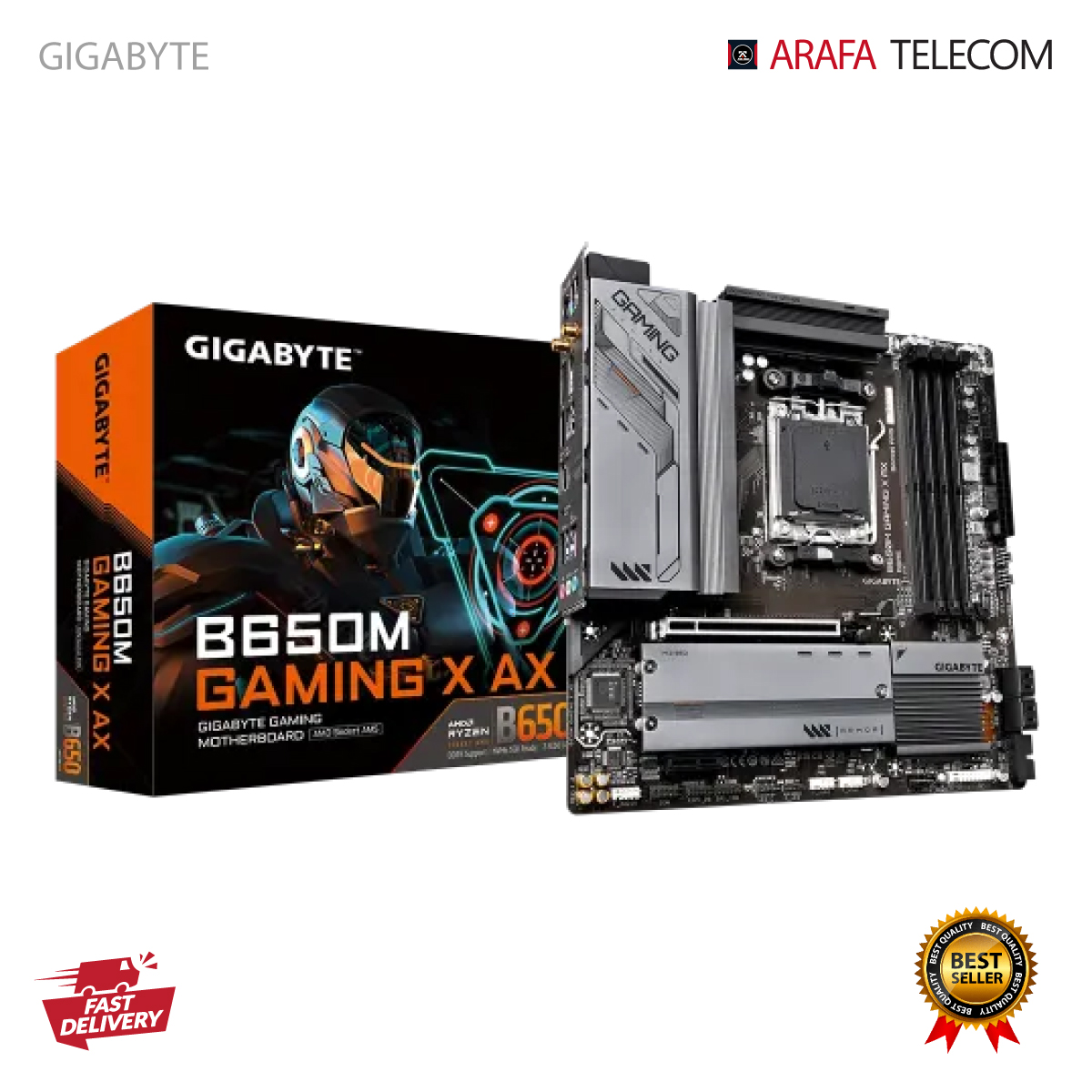

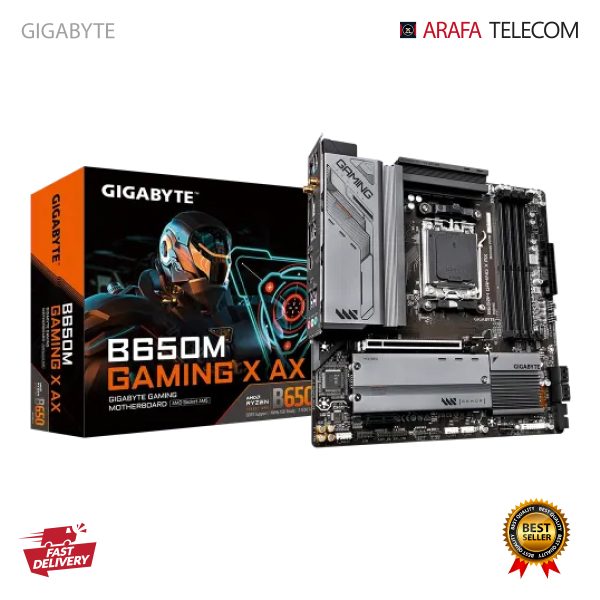

GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard

Basic Information

Supported CPU

AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors

Chipset

AMD B650

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

– AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode

– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Memory

Type

DDR5

Slots

4 DIMMs

Supported Memory

8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme

Memory Profile (XMP) memory module

Maximum Memory

192GB

Graphics

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

– 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports

(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Connector & Ports

HDMI

1x HDMI

Display Port (s)

2 x DisplayPorts

USB (s)

CPU:

– 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU + USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports on the back pane

Chipset:

– 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

– 4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port (s)

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek Wi-Fi 6E RTL8852CE

– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.3

– Support for 11ax 160MHz wireless standard

Supported Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

– AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

– AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Audio

3 x Audio jacks

Internal I/O Ports

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header (D_LED1)

1 x addressable LED strip header (D_LED2)

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)

2 x DisplayPorts

1 x HDMI port

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x USB 3.2 Gen 1 ports

3 x audio jacks

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

Others

Special Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Warranty Information

Manufacturing Warranty

3 Years
